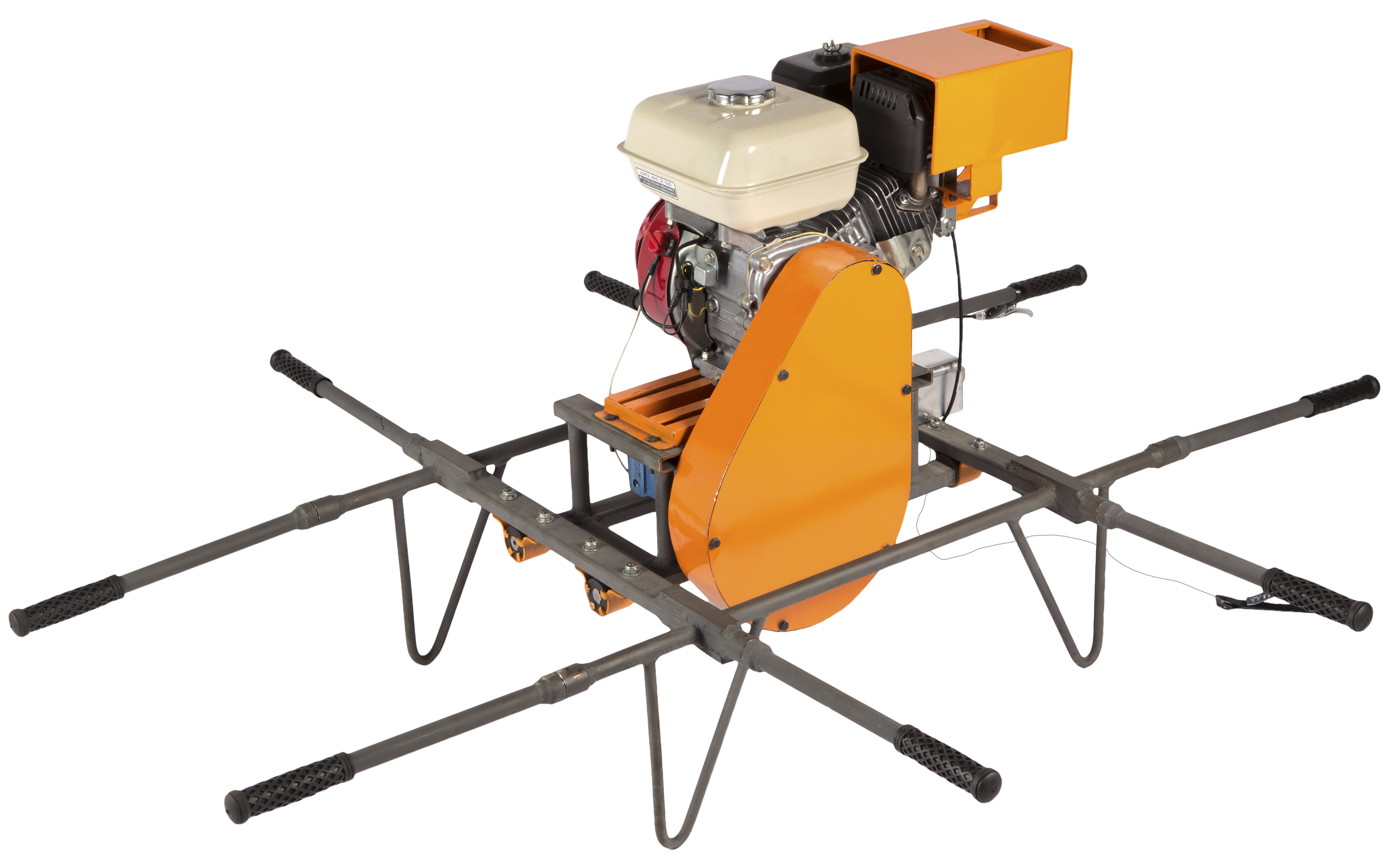

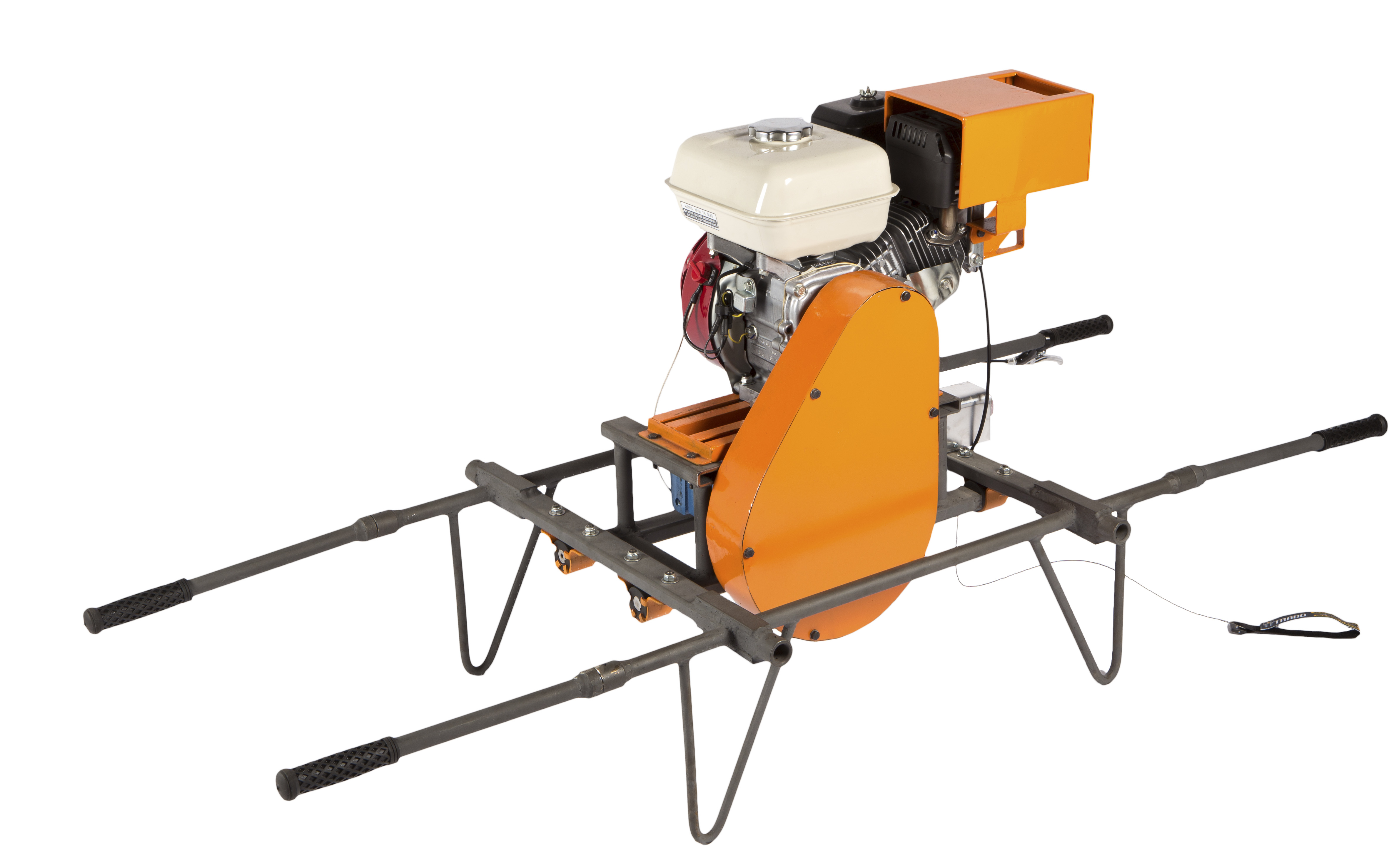

AUGER DRILL TRADO TR

These are portable soil-drilling units, designed specifically for mineral prospecting, environmental monitoring, foundations for light buildings and the installation of semi-artesian wells. Built to drill to a depth of 30 meters, they have a collapsible structure (transportable in a pickup truck), do not require specialized labor and have low operating and maintenance costs. They avoid the need for vegetation clearing, giving the operation a low environmental footprint. They comply with NR-12.

Specifications:
  TRX TR1 TR2
Engine Briggs & Stratton IC 3.5 Honda GX 160 Honda GX 200
Displacement / Power 127cc / 3.5cv 160cc / 5.5cv 200cc / 6.5cv
Fuel Gasolina Comum
Gearbox Redução 1:15 - Carcaça em Ferro Fundido
Transmission Correias e Polias Duplas
Number of operators 2 ou 4 Operadores (Acompanha braços para 04 operadores)
Suggested maximum depth Até 30 m
Hole diameter 2" (7,5cm) a 12"(30cm) 2" (7,5cm) a 18" (45cm)
Net weight 60kg
